Snap Fit Spigot
Products
Snap Fit Spigot
| Snap Fit Spigot, unit price 304 | ||||||||
|---|---|---|---|---|---|---|---|---|

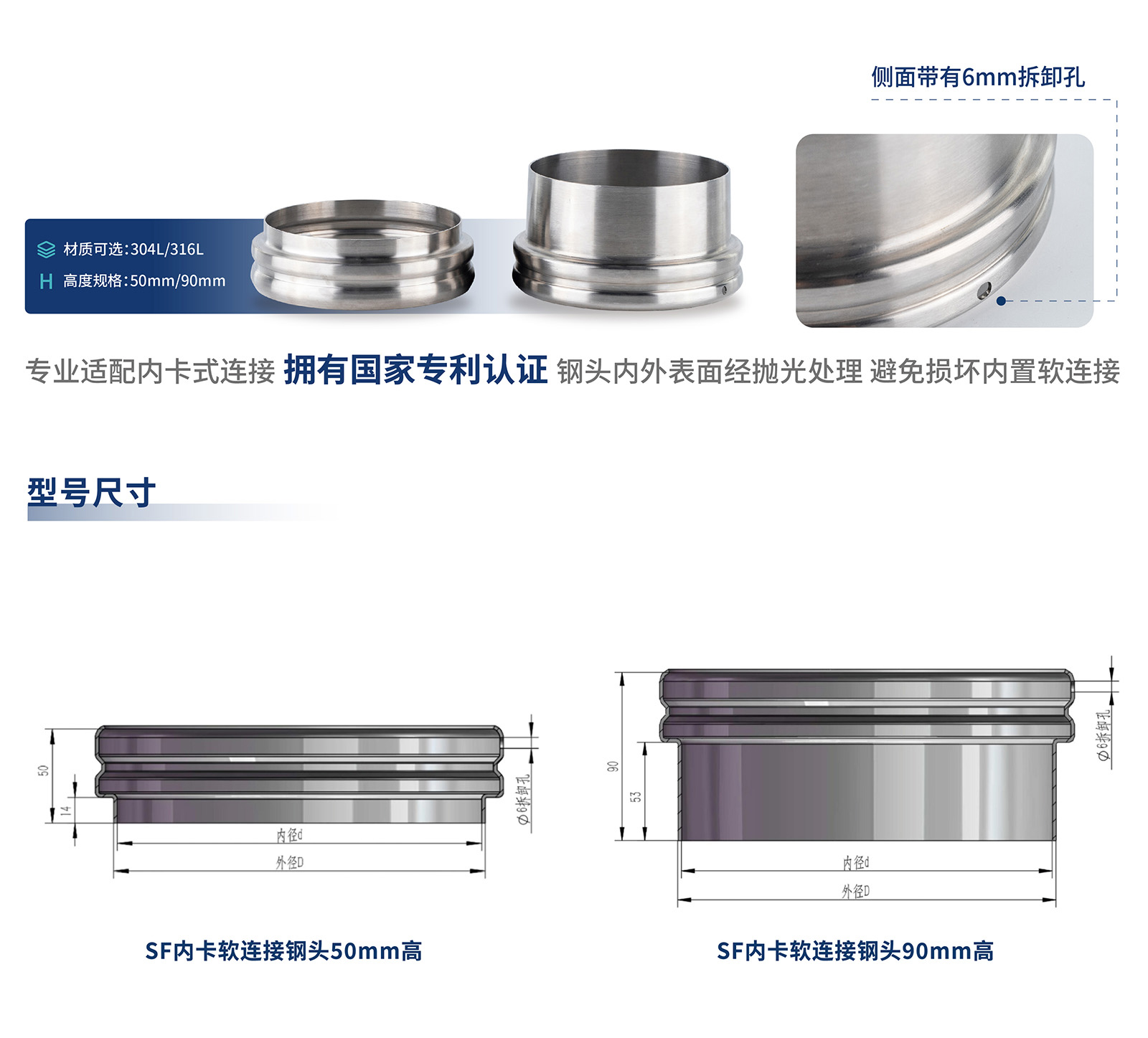

| Serial number | Steel head outer diameter D | The inner diameter of the steel head is d | Steel head height h | Model 304 material | 316L grade model | 3D drawing STEP | CAD drawings DWG | Drawings PDF |
| 1 | 102 | 97 | 90 | SF D102x90 304SS | SF D102x90 316L | Download | Download | Download |
| 2 | 152 | 148 | 90 | SF D152x90 304SS | SF D152x90 316L | Download | Download | Download |
| 3 | 204 | 200 | 90 | SF D204x90 304SS | SF D204x90 316L | Download | Download | Download |
| 4 | 254 | 250 | 90 | SF D254x90 304SS | SF D254x90 316L | Download | Download | Download |
| 5 | 304 | 300 | 90 | SF D304x90 304SS | SF D304x90 316L | Download | Download | Download |
| 6 | 354 | 350 | 90 | SF D354x90 304SS | SF D354x90 316L | Download | Download | Download |
| 7 | 404 | 400 | 90 | SF D404x90 304SS | SF D404x90 316L | Download | Download | Download |
| 8 | 454 | 450 | 90 | SF D454x90 304SS | SF D454x90 316L | Download | Download | Download |
| 9 | 504 | 500 | 90 | SF D504x90 304SS | SF D504x90 316L | Download | Download | Download |
| 10 | 154 | 150 | 50 | SF D154x50 304SS | SF D154x50 316L | Download | Download | Download |
| 11 | 159 | 155 | 50 | SF D159x50 304SS | SF D159x50 316L | Download | Download | Download |
| 12 | 204 | 200 | 50 | SF D204x50 304SS | SF D204x50 316L | Download | Download | Download |
| 13 | 219 | 215 | 50 | SF D219x50 304SS | SF D219x50 316L | Download | Download | Download |
| 14 | 254 | 250 | 50 | SF D254x50 304SS | SF D254x50 316L | Download | Download | Download |
| 15 | 273 | 269 | 50 | SF D273x50 304SS | SF D273x50 316L | Download | Download | Download |
| 16 | 304 | 300 | 50 | SF D304x50 304SS | SF D304x50 316L | Download | Download | Download |
| 17 | 325 | 321 | 50 | SF D325x50 304SS | SF D325x50 316L | Download | Download | Download |
| 18 | 354 | 350 | 50 | SF D354x50 304SS | SF D354x50 316L | Download | Download | Download |
| 19 | 377 | 373 | 50 | SF D377x50 304SS | SF D377x50 316L | Download | Download | Download |
| 20 | 404 | 400 | 50 | SF D404x50 304SS | SF D404x50 316L | Download | Download | Download |
| 21 | 425 | 421 | 50 | SF D425x50 304SS | SF D425x50 316L | Download | Download | Download |
| 22 | 454 | 450 | 50 | SF D454x50 304SS | SF D454x50 316L | Download | Download | Download |
| 23 | 480 | 476 | 50 | SF D480x50 304SS | SF D480x50 316L | Download | Download | Download |
| 24 | 504 | 500 | 50 | SF D504x50 304SS | SF D504x50 316L | Download | Download | Download |
| 25 | 554 | 550 | 50 | SF D554x50 304SS | SF D554x50 316L | Download | Download | Download |
| 26 | 604 | 600 | 50 | SF D604x50 304SS | SF D604x50 316L | Download | Download | Download |
| 27 | 654 | 650 | 50 | SF D654x50 304SS | SF D654x50 316L | Download | Download | Download |
| 28 | 704 | 700 | 50 | SF D704x50 304SS | SF D704x50 316L | Download | Download | Download |
| 29 | 754 | 750 | 50 | SF D754x50 304SS | SF D754x50 316L | Download | Download | Download |
| 30 | 804 | 800 | 50 | SF D804x50 304SS | SF D804x50 316L | Download | Download | Download |
| 31 | 854 | 850 | 50 | SF D854x50 304SS | SF D854x50 316L | Download | Download | Download |
| 32 | 904 | 900 | 50 | SF D904x50 304SS | SF D904x50 316L | Download | Download | Download |
| 33 | 954 | 950 | 50 | SF D954x50 304SS | SF D954x50 316L | Download | Download | Download |
| 34 | 1004 | 1000 | 50 | SF D1004x50 304SS | SF D1004x50 316L | Download | Download | Download |
| 35 | 1054 | 1050 | 50 | SF D1054x50 304SS | SF D1054x50 316L | Download | Download | Download |
| 36 | 1104 | 1100 | 50 | SF D1104x50 304SS | SF D1104x50 316L | Download | Download | Download |
| 37 | 1154 | 1150 | 50 | SF D1154x50 304SS | SF D1154x50 316L | Download | Download | Download |
| 38 | 1204 | 1200 | 50 | SF D1204x50 304SS | SF D1204x50 316L | Download | Download | Download |
| 39 | 1254 | 1250 | 50 | SF D1254x50 304SS | SF D1254x50 316L | Download | Download | Download |
